SONOFF TRVZB Zigbee Thermostatic Radiator Valve SONOFF Bridge Pro SNZB-06P SNZB-03P SNZB-04P SNZB-02D Sonoff Switch SNZB-02P

WiFi is not supported, and no Tuya products are supported.
EWELink or Sonoff Zigbee gateways are supported.
Note: The products all need to work with Zigbee 3.0 gateways such as ZBBridge-P, please confirm before purchasing.

SONOFF SNZB-01P SNZB-02P SNZB-03P SNZB-04P SNZB-05P SNZB-06P ZBMINI L2 Zigbee BRidge PRO Smart Home Module Support Alexa Google

Description:

Model:ZB Bridge-P

Input:5V1A

Wireless:Wi-Fi IEEE 802.11 b/g/n 2.4GHz,

connections:ZigBee 3.0

Working environment:-10°C~40°C

Material:62x62x20mm

Model:SNZB-01P

Wireless connection:ZigBee (IEEE 802.15.4)

Battery model:CR2477

Working temperature:-10°C-60°C

Casing material:PC

Net weight:27.8g

Product dimension:45x45x17.7mm

Model:SNZB-02P

Working temperature:-10°C~60°C

Wireless connection:Zigbee 3.0

Battery model:CR2477

Casing material:PC

Product dimension:45x45x17.7mm

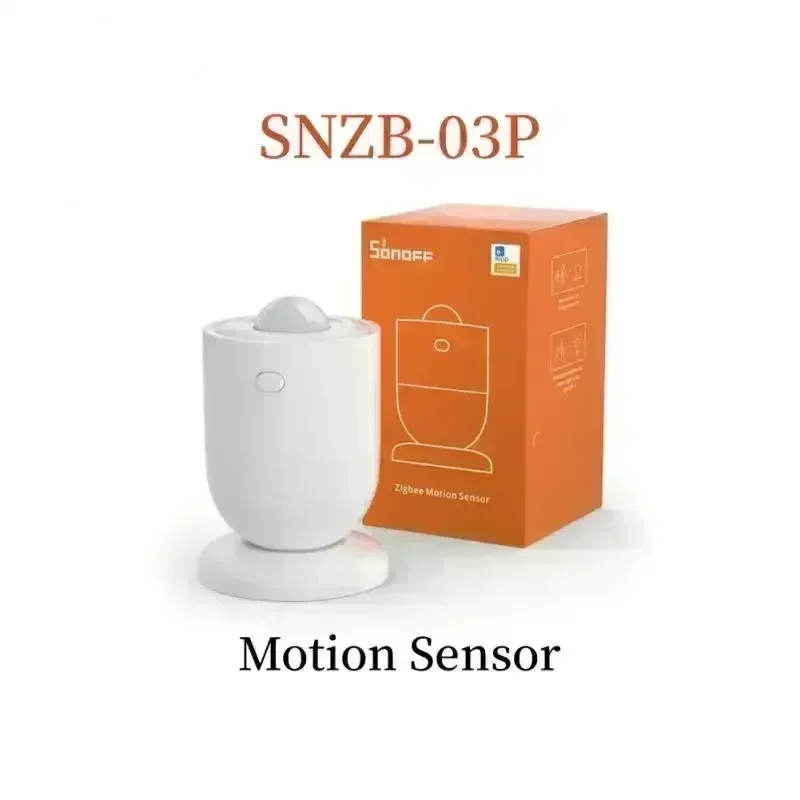

Model:SNZB-03P

Working temperature:-10°C~60°C

Wireless connection:Zigbee 3.0

Working humidity:5-95%RH, non-condensing

Detection range:6m(20f), 110°

Battery model:CR2477(3V)

Casing material:PC

Net weight:54g

Product dimensions:44x44x65mm

Model:SNZB-04P

Wireless connection:Zigbee 3.0

Installation distance:≤20mm

Battery model:CR2477(3V)

Working temperature:-10°C~60°C

Working humidity:5-95%RH, non-condensing

Casing material:PC

Net weight:33g

Product dimension:Transmitter (50.5x32x21.9mm) Magnet (27x12x12.4mm)

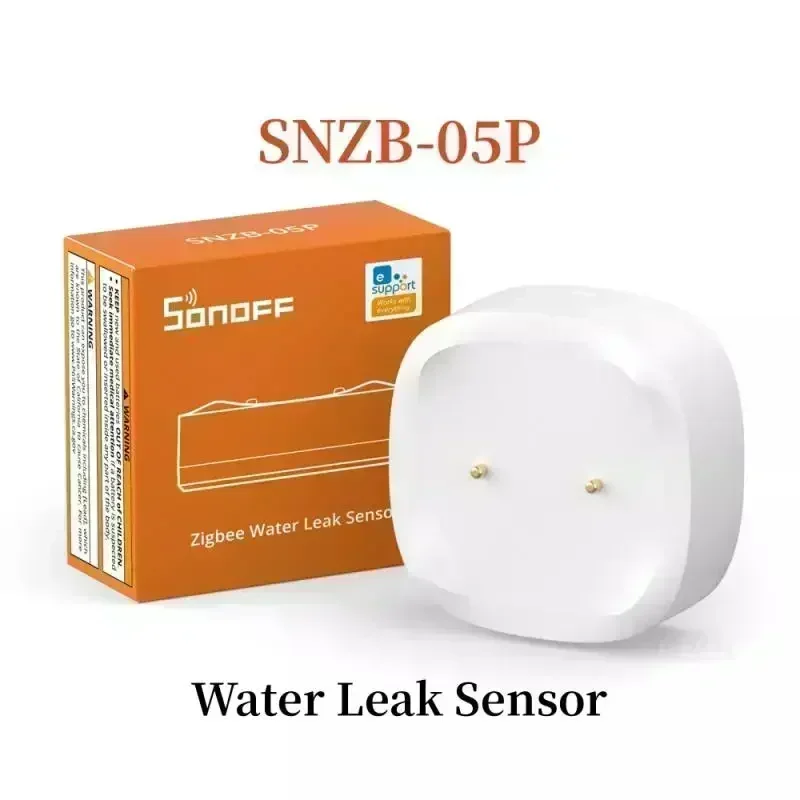

Model:SNZB-05P

Wireless connection:Zigbee 3.0

Battery model:CR2477(3V)

Working temperature:-10~60°C

Working humidity:0~100%RH

Casing material:PC ABS

Communication distance:130m (Open space)

Product dimensions:48x48x21.6mm

Net weight:45g

Model:SNZB-06P

lnput:5V-1A

Wireless connection:Zigbee 3.0

Working temperature:-10℃~60℃

Zigbee device type:Router

Working humidity:0~90%RH, non-condensing

Product dimension:44.2×44.2x59mm

Net weight:31g

Casing materials:ABS PC

Model:TRVZB

【Smart Control】

SONOFF Zigbee thermostatic radiator valve has all the smart functions, including APP remote control, voice control, set schedule, group control, etc.

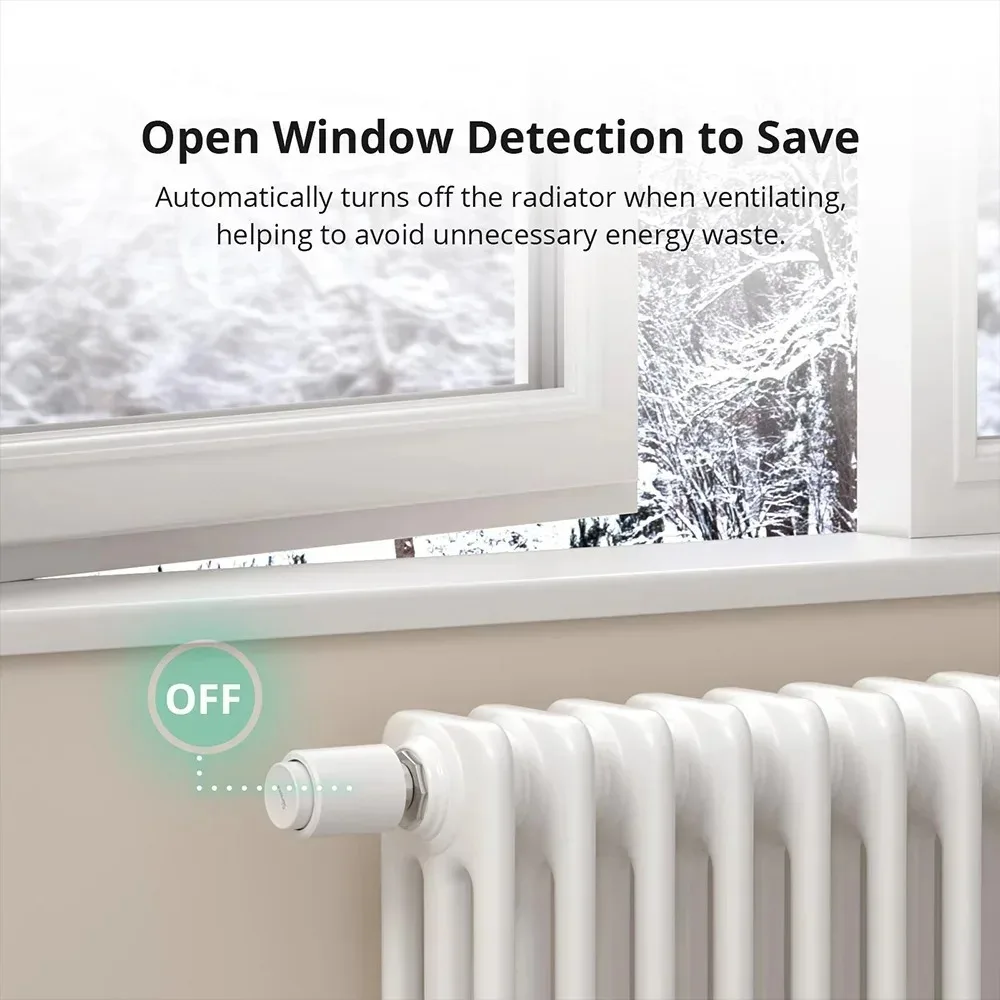

【Open Window Detection】

Automatically turns off the radiator when ventilating, helping to avoid unnecessary energy waste.

【Zigbee 3.0 Standard Compatible】

Supports Zigbee hubs using the Zigbee 3.0 protocol, and theoretically supports adding to any Zigbee hub developed in accordance with Zigbee 3.0 protocols.

Such as SONOFF iHost, SONOFF NSPanel Pro, ZB Bridge Pro, ZBDongle-P and ZBDongle-E.

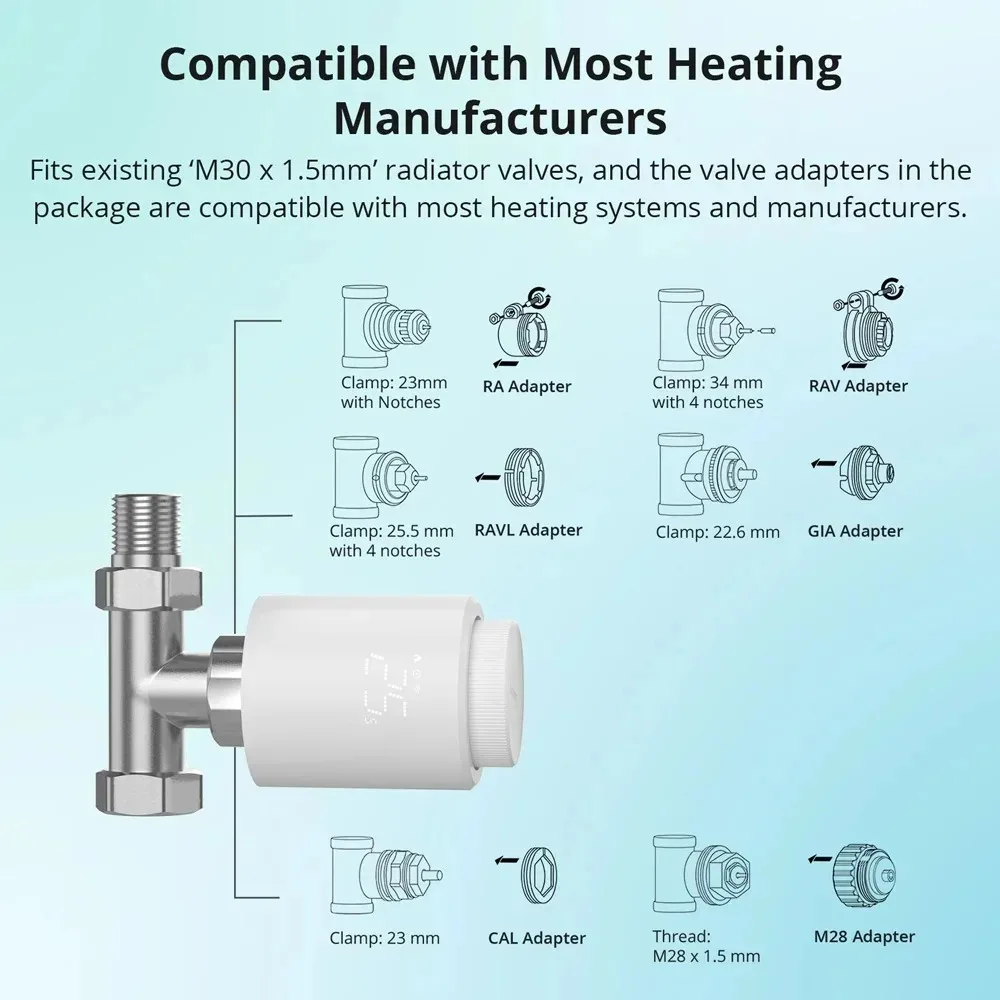

【Compatible with Most Heating Manufacturers】

Fits existing ‘M30 x 1.5mm’ radiator valves, and the valve adapters in the package are compatible with most heating systems and manufacturers.

【Complete Functional】

Child lock prevents children from mishandling the radiator. Frost protection makes sure pipes don't freeze and burst, keeping your home safe.

Support 6 months of historical data query, you can use data to provide ideas for starting heating earlier or later next time.

Note : Thermostatic Radiator Valve needs to be used with Zigbee Hub.

Please note that SONOFF Zigbee Thermostratic Radiator Valve doesn’t support SONOFF ZBbridge.

Specifications:

SONOFF Zigbee Bridge Pro is the updated Zigbee bridge that enables you to manage up to 128 sub-devices with larger capacity and stability, plug-in devices can act as Zigbee routers to extend the network range.

SONOFF Zigbee Bridge Pro newly added features like smart home security, local smart scene, and easy arm and disarm. You can customize 3 modes by setting different arming devices. The local smart scene always works well even Wi-Fi is disconnected. Built-in high-precision local RTC, a short power outage will not affect the time synchronization. Time schedule can return work once power restoration. Note that the local scene is for Zigbee devices only.

SONOFF SWV, SONOFF Zigbee wireless switch, and sensors like temperature and humidity sensor-SNZB-02, motion sensor-SNZB-03, and wireless door/window sensor-SNZB-04 can be connected with the Zigbee Bridge Pro to give you more possibility to create various scene linkages. It can also command Alexa, Google Assistant and SmartThings to voice control your home.

Supports adding up to 128 sub-devices】Zigbee Bridge Pro supports adding sub-devices increased from 32 to 128.

【Smart Home Security】Set up home security modes, such as home mode, away mode, and sleep mode. The bridge can be used as a local alarm.

【Local Smart Scene】Timing and scene linkage between Zigbee devices can be executed normally even if the network is disconnected.

【Wi-Fi & Zigbee Dual-protocol Support】Make communication between Zigbee devices and WiFi devices.

【Strong Connectivity, Limitless Possibility 】The Bridge supports to add ZigBee devices that SONOFF has released, like ZBMINI-L smart switch and S26R2ZB smart plug, making your home smarter.
