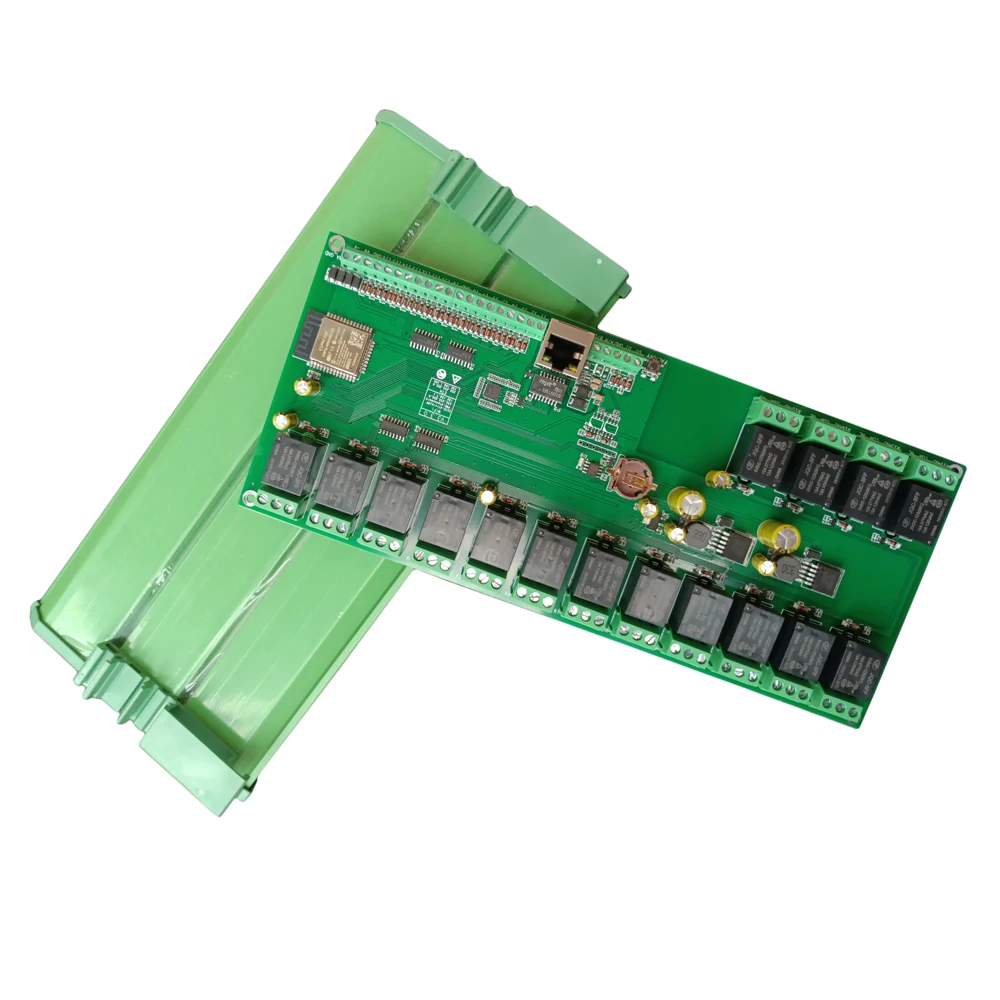

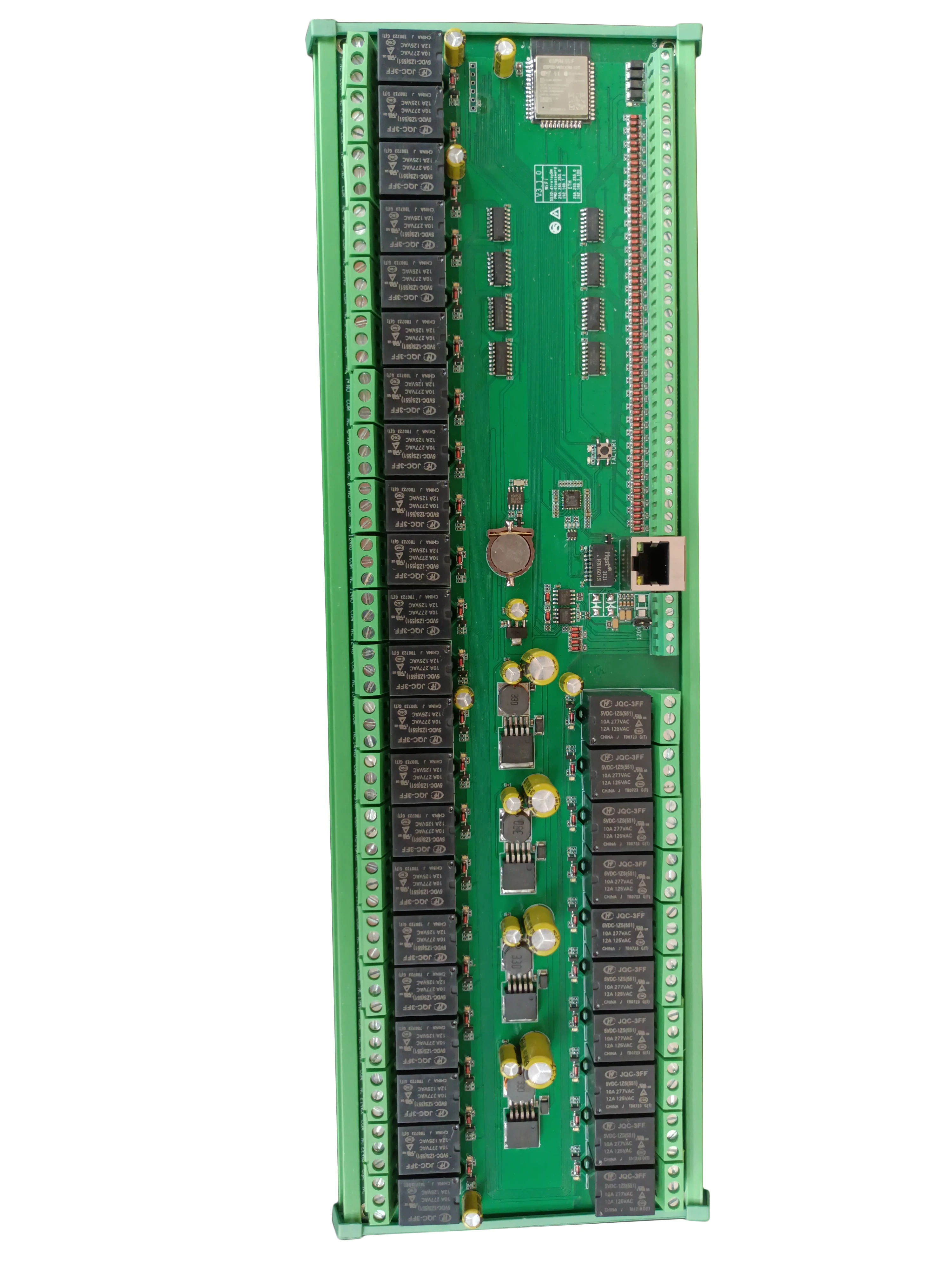

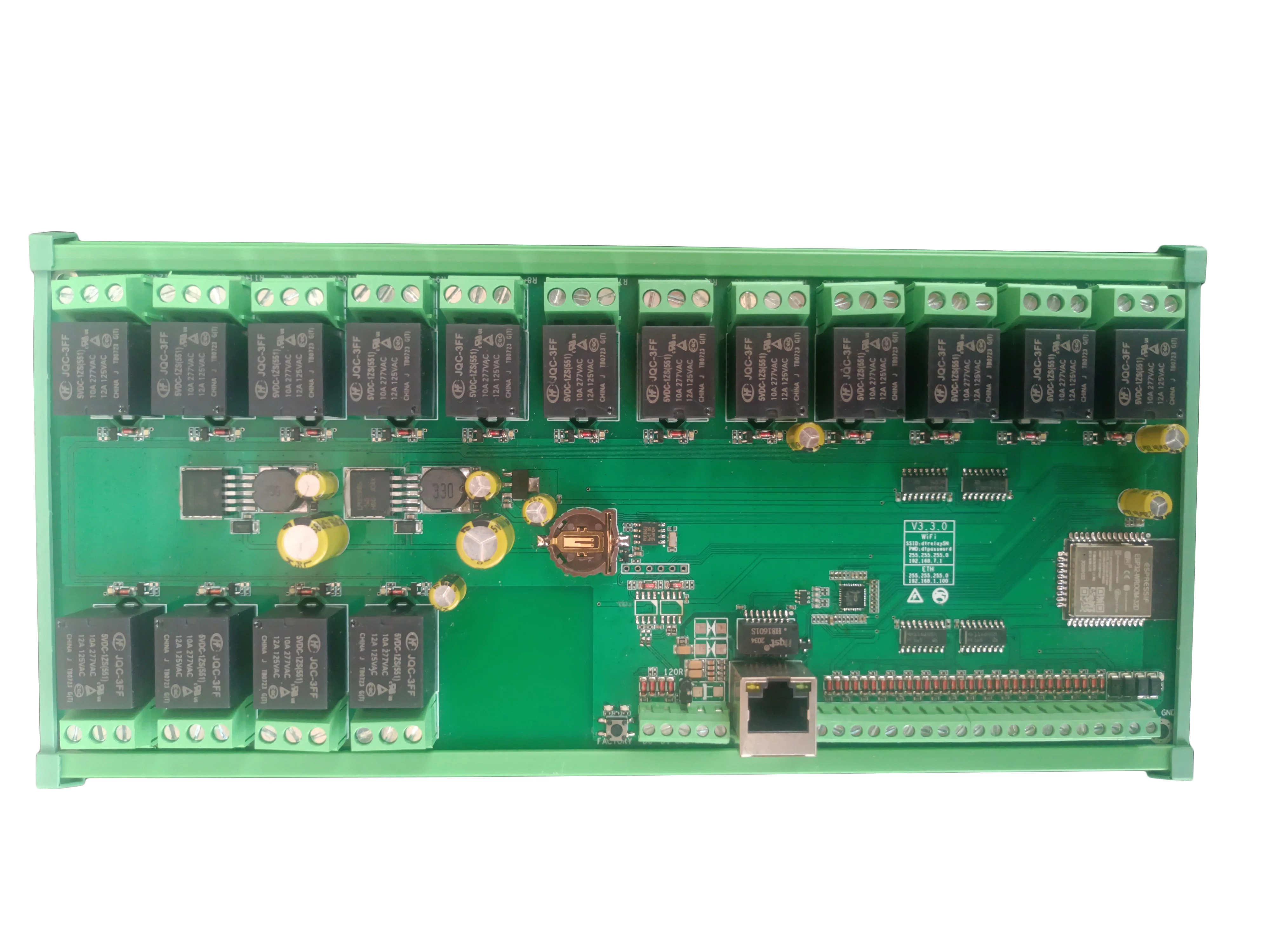

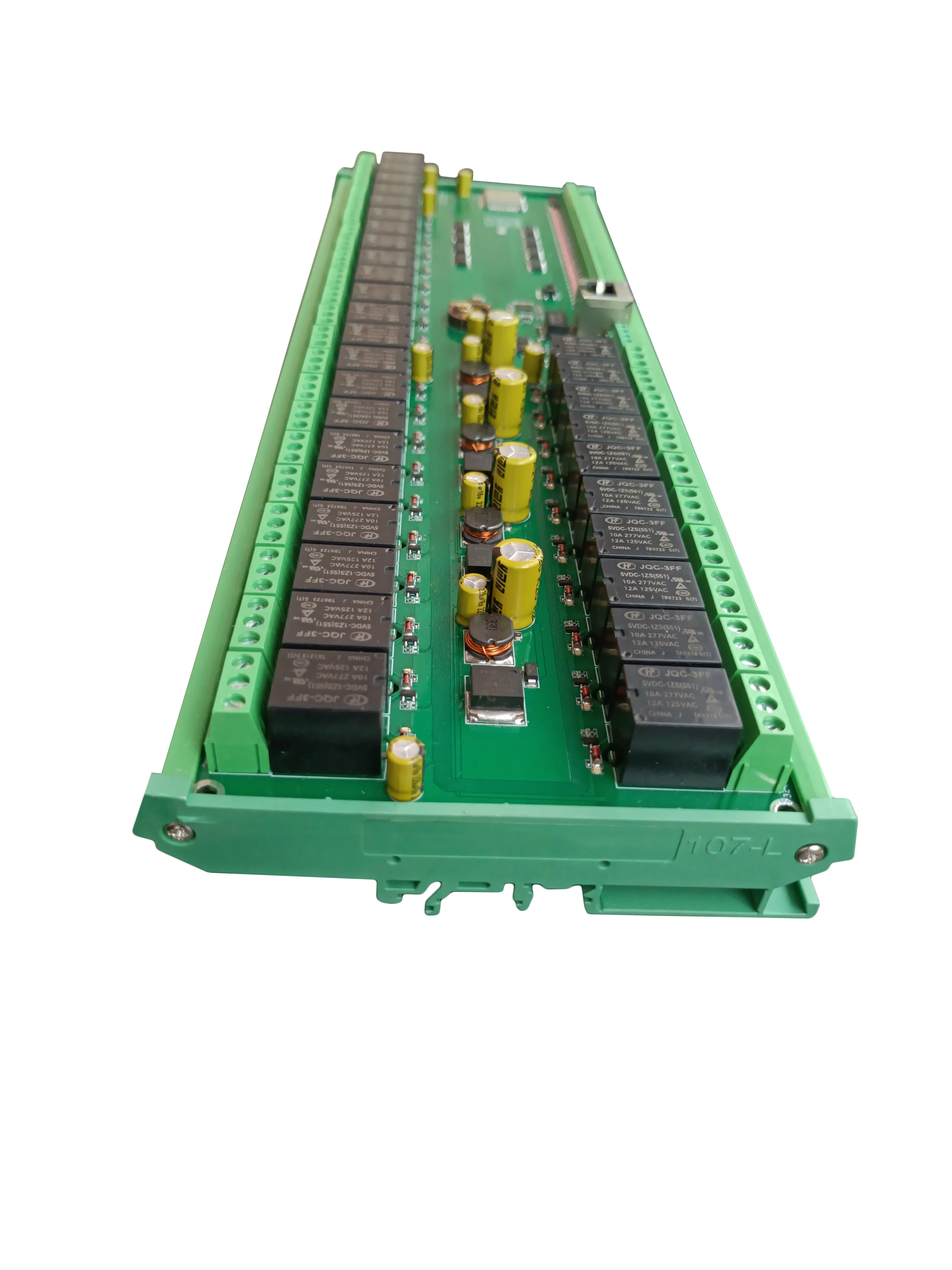

Ethernet Relay Board 16 32 Channel ESP32 WIFI MQTT Home Assistant Domoticz OpenHAB Digital Input Smart Switch
Interval de prețuri: 383,66 lei până la 755,33 lei
Livrare
- Livrare prin curier
Livrarea se va face rapid in termenii si conditiile de livrare
10-12 zile
Gratuit
- Livrare rapida
Optional avem metoda de livrare rapida
7-10 zile
35 Ron
- Garantia producatorului
- 30 de zile retur
Descriere
- Power Source: DC
- Inbox adaptor: No
- High-concerned chemical: None
- Communication method: Other
- Camera Equipped: No
- State of Assembly: Ready-to-Go
- Model Number: DT-R016/DT-R032
- Compatibility: others
- Brand Name: DT
- Power Source: DC
- Origin: Mainland China
- home automation system: domoticz,home assistant,openHAB,Red-Node
- Interface: ethernet,wifi,rs485,CANbus,wiegand
- protocol: MQTT,HTTP GET,CoAP,dingtian string,dingtian binary
- Function: relay task, IP Watchdog, OTA Upgrade
- Power supply: 12VDC/24VDC, 12VAC/24VAC
- Chip: ESP32
- case type: DIN35
Relay board function instruction as below, any questions, please contact us
ETHWiFi means support Ethernet and WIFI
ETHWiFi RS485 means support Ethernet, WIFI and RS485
ETHWiFi CAN means support Ethernet, WIFI and CAN bus
Support Customized and develop by our company
User manual and programming manual SDK:
http://www.dingtian-tech.com/sdk/relay_sdk.zip
Notes: it is finished relay board, don’t support flash your own firmware. If you want to flash firmware, please contact us
 Specification |
|||||
|
Parameter |
DT-R002 |
DT-R004 |
DT-R008 |
DT-R016 |
DT-R032 |
|
Photo |
|
|
|
|
|
|
Interface |
RJ45, WiFi, RS485, CAN, Wiegand(optional) |
||||
|
Size(Relay Board) |
87*68mm |
91.6*86.4mm |
122*87mm |
250*107mm |
370*107mm |
|
Size(DIN35 Case) |
90*90*40mm |
115*90*40mm |
145*90*40mm |
252*123*43mm |
373*123*43mm |
|
Power Supply |
12V/24VDC, 5V/24VAC |
||||
|
Power Adapter |
12VDC/1.5A |
12VDC/1.5A |
12VDC/1.5A |
12VDC/2A |
12VDC/3A |
|
Power Consumption |
2W |
3W |
5W |
9W |
16W |
|
Working Temperature |
-20~75℃ |
||||
|
Storage Temperature |
-40~80℃ |
||||
|
Protocol |
MQTT, Modbus-RTU/TCP/UDP/ASCII, TCP, UDP, HTTP GET CGI, CoAP |
||||
|
Quantity Relays |
2DO |
4DO |
8DO |
16DO |
32DO |
|
Quantity Digital Input |
2DI |
4DI |
8DI |
16DI |
32DI |
|
Quantity Wiegand |
1(optional) |
1(optional) |
0 |
1 |
1 |
|
RTC |
NO |
NO |
NO |
Optional |
Optional |
|
Home Automation |
Domoticz, Home Assistant, openHAB, Red-Node |
||||
|
Function |
IP Watchdog, Task, NTP Client, Input mutual control, OTA Upgrade |
||||
|
Ethernet IP |
192.168.1.100 |
||||
|
Web User/PWD |
admin/admin |
||||
|
WiFi AP IP |
192.168.7.1 |
||||
|
WiFi AP SSID/PWD |
dtrelaySN/dtpassword |
||||
|
WiFi STA IP |
192.168.1.97 |
||||
Support Domoticz/ Home Assistant/ openHAB
Note:
Please keep your computer ip is the same NETWORK SEGMENT as our default ip 192.168.1.100
